BPF

BPF stands for Berkeley Packet Filter. From https://en.wikipedia.org/wiki/Berkeley_Packet_Filter:

BPF supports filtering packets, allowing a userspace process to supply a filter program that specifies which packets it wants to receive. For example, a tcpdump process may want to receive only packets that initiate a TCP connection. BPF returns only packets that pass the filter that the process supplies. This avoids copying unwanted packets from the operating system kernel to the process, greatly improving performance.

Configuration

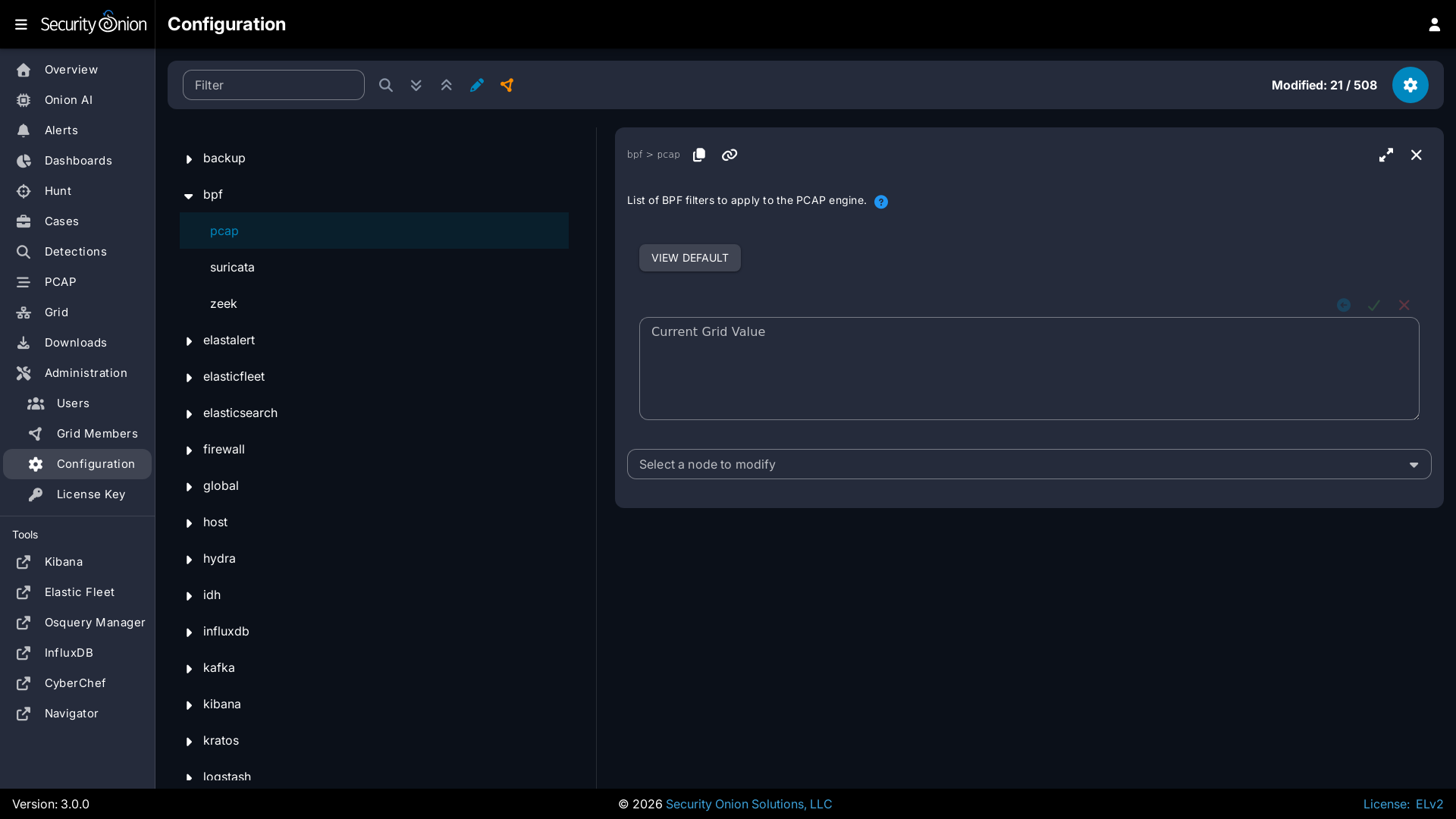

You can modify your BPF configuration by going to Administration --> Configuration --> bpf. You can apply BPF configuration to Suricata or Zeek. If you configure a BPF for Suricata, then it can apply to alerts, metadata, and/or Full Packet Capture.


Multiple Conditions

If your BPF contains multiple conditions you can join them with a logical and or logical or.

Here's an example of joining conditions with a logical and:

not host 192.168.1.2 and not host 192.168.1.3
Here's an example of joining conditions with a logical or:

host 192.168.1.2 or host 192.168.1.3

VLAN

If you have traffic that has VLAN tags, you can craft a BPF as follows:

<your filter> or (vlan and <your filter>)

Notice that you must include your filter on both sides of the vlan tag.

For example:

(not (host 192.168.1.2 or host 192.168.1.3 or host 192.168.1.4)) or (vlan and (not (host 192.168.1.2 or host 192.168.1.3 or host 192.168.1.4)))

Adding Comments

To provide more context to your filters, you can add comments. For example:

# lab-east
not host 192.168.1.2 and not host 192.168.1.3 &&
# lab-west
not host 192.168.1.4 or not host 192.168.1.5 &&
# lab-central
not host 192.168.1.6 or not host 192.168.1.27

Troubleshooting BPF using tcpdump

If you need to troubleshoot BPF, you can use tcpdump as shown in the following articles: https://taosecurity.blogspot.com/2004/09/understanding-tcpdumps-d-option-have.html https://taosecurity.blogspot.com/2004/12/understanding-tcpdumps-d-option-part-2.html https://taosecurity.blogspot.com/2008/12/bpf-for-ip-or-vlan-traffic.html

More Information

Note

For more information about BPF, please see: https://en.wikipedia.org/wiki/Berkeley_Packet_Filter https://biot.com/capstats/bpf.html
