Suricata¶

From https://suricata.io:

Suricata is a free and open source, mature, fast and robust network threat detection engine. Suricata inspects the network traffic using a powerful and extensive rules and signature language, and has powerful Lua scripting support for detection of complex threats.

Suricata NIDS alerts can be found in Alerts, Dashboards, Hunt, and Kibana.

Here's an example of Suricata NIDS alerts in Alerts:

If enabled, Suricata metadata (protocol logs) can be found in Dashboards, Hunt, and Kibana.

Community ID¶

Security Onion enables Suricata's built-in support for Community ID.

VLAN Tags¶

If your network traffic has VLAN tags, then Suricata will log them. Dashboards has a VLAN dashboard which will show this data.

If your network traffic has mixed VLAN tags (VLAN tags in one direction but not the other), then you may need to do the following:

• Navigate to Administration --> Configuration.
• At the top of the page, click the Options menu and then enable the Show advanced settings option.
• Navigate to Suricata > config > vlan > use-for-tracking and set it to false.

Configuration¶

You can configure Suricata by going to Administration --> Configuration --> Suricata.

If you would like to configure NIDS rules, take a look at the Detections interface.

HOME_NET¶

The HOME_NET variable defines the networks that are considered home networks (those networks that you are monitoring and defending). The default value is RFC1918 private address space (10.0.0.0/8, 192.168.0.0/16, and 172.16.0.0/12). You can modify this default value by going to Administration --> Configuration --> Suricata --> config --> vars --> address-groups --> HOME_NET.

EXTERNAL_NET¶

By default, EXTERNAL_NET is set to any (which includes HOME_NET) to detect lateral movement inside your environment. You can modify this default value by going to Administration --> Configuration --> Suricata --> config --> vars --> address-groups --> EXTERNAL_NET.

Stats¶

For Suricata statistics, see Grid, InfluxDB, and /opt/so/log/suricata/stats.log.

Performance¶

If Grid shows that Suricata is experiencing packet loss, then you may need to do one or more of the following:

• Tune the NIDS ruleset.
• Apply a BPF.
• Adjust max-pending-packets in Administration --> Configuration --> Suricata --> config --> max-pending-packets.
• Adjust AF-PACKET workers in Administration --> Configuration --> Suricata --> config --> af-packet --> threads.

If you have multiple physical CPUs, you’ll most likely want to pin sniffing processes to a CPU in the same Non-Uniform Memory Access (NUMA) domain that your sniffing NIC is bound to. Accessing a CPU in the same NUMA domain is faster than across a NUMA domain.

Metadata¶

By default, Security Onion uses Zeek to record protocol metadata. If you don't need all of the protocol coverage that Zeek provides, then you can switch to Suricata metadata to save some CPU cycles. If you choose to do this, then here are some of the kinds of metadata you can expect to see in Dashboards or Hunt:

• Connections
• DHCP
• DNS
• Files
• FTP
• HTTP
• SSL

If you later find that some of that metadata is unnecessary, you can enable the SO_FILTERS ruleset to filter out unnecessary metadata. Navigate to Administration --> Configuration --> SOC --> config --> server --> modules --> suricataengine --> rulesetSources and enable the SO_FILTERS ruleset.

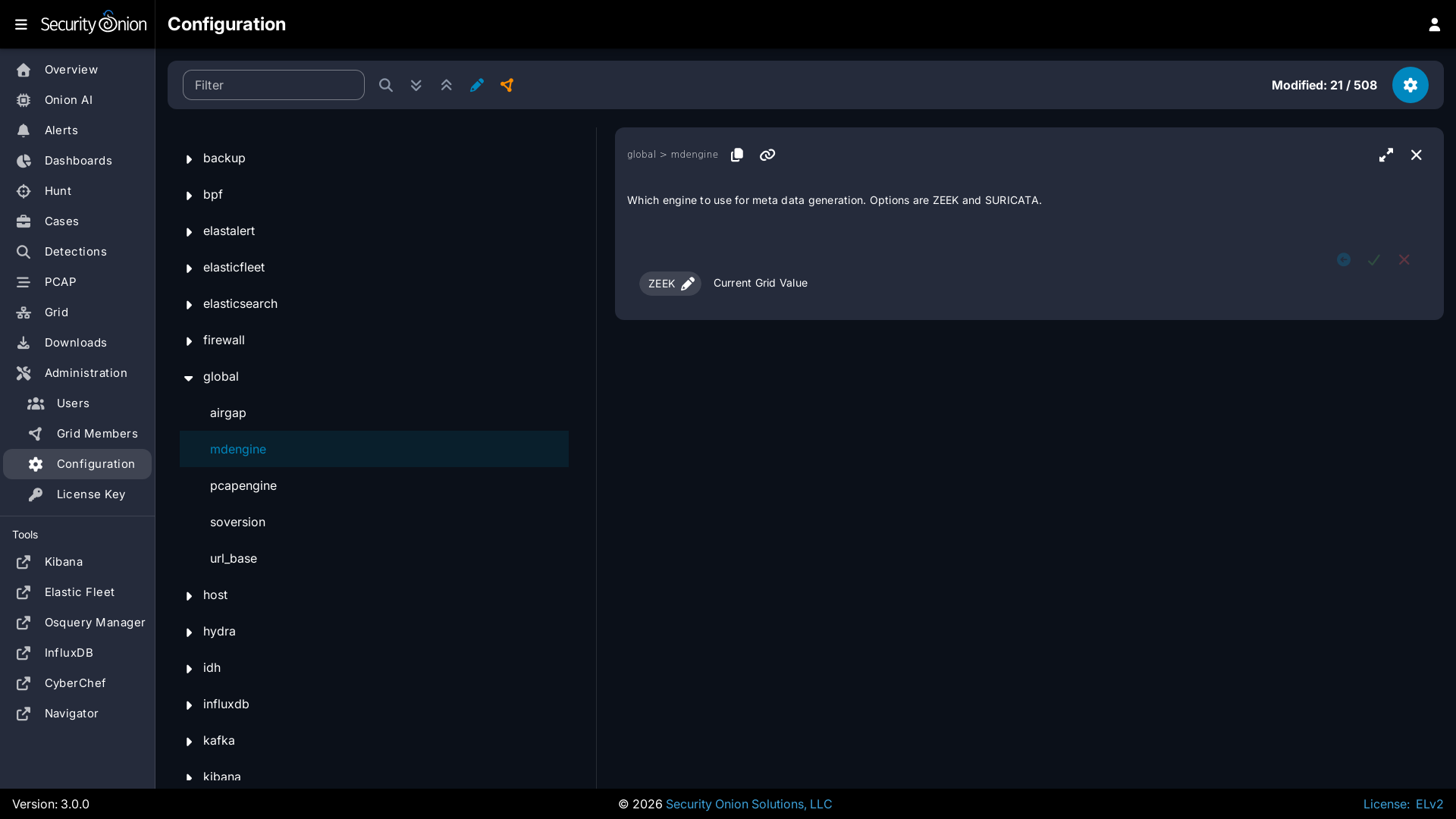

To change your grid's metadata engine from Zeek to Suricata, go to Administration --> Configuration --> global --> mdengine and change the value from Zeek to Suricata:

File Extraction¶

If you choose Suricata for metadata, it will extract files from network traffic and Strelka will then analyze those extracted files. The SO_EXTRACTIONS ruleset controls which file types are extracted and is enabled by default when Suricata is the metadata engine. You can customize file extraction by modifying rules in this ruleset.

PCAP¶

Security Onion uses Suricata for full packet capture. For more information, please see the Full Packet Capture section.

Diagnostic Logging¶

If you need to troubleshoot Suricata, check /opt/so/log/suricata/suricata.log. Depending on what you’re looking for, you may also need to look at the Docker logs for the container:

sudo docker logs so-suricata

Testing¶

The first and easiest way to test Suricata is to access http://testmynids.org/uid/index.html from a machine that is being monitored by your Security Onion deployment. You can do so via the command line using curl:

curl testmynids.org/uid/index.html

If everything is working correctly, you should see a corresponding alert (GPL ATTACK_RESPONSE id check returned root) in Alerts. You should also be able to find the alert in Dashboards or Hunt.

If you do not see this alert, try checking to see if the rule is enabled by going to Detections and searching for the SID of the rule which is 2100498. One way to search for this rule is to specify it in the URL as follows:

#/detections?q=2100498

Another way to test Suricata is with a utility called tmNIDS. You can run the tool in interactive mode like this:

curl -sSL https://raw.githubusercontent.com/0xtf/testmynids.org/master/tmNIDS -o /tmp/tmNIDS && chmod +x /tmp/tmNIDS && /tmp/tmNIDS

Finally, you can also test Suricata alerting by replaying some test PCAP files via so-test.

Troubleshooting Alerts¶

If you're not seeing the Suricata alerts that you expect to see, here are some things that you can check:

• If you have metadata enabled, check to see if you have metadata for the connections. Depending on your configuration, this could be Suricata metadata or Zeek metadata. Go to Dashboards, click the dropdown menu, select the Connections seen by Zeek or Suricata dashboard, and see if the connections you expect to see in your network traffic are listed there.

• If you have metadata enabled but aren't seeing any metadata, then something may be preventing the process from seeing the traffic. Check to see if you have any BPF configuration that may cause the process to ignore the traffic. If you're sniffing traffic from the network, verify that the traffic is reaching the NIC using tcpdump. If importing a PCAP file, verify that file contains the traffic you expect and that the Suricata process can read the file and any parent directories.

• Check to see if you have mixed VLAN tags (VLAN tags in one direction but not the other). If so, see the VLAN Tags section above to configure Suricata appropriately.

• Check your HOME_NET configuration to make sure it includes the networks that you're watching traffic for.

• Check to see if you have a full NIDS ruleset with rules that should specifically alert on the traffic and that those rules are enabled.

• Check to see if you have any threshold or suppression configuration that might be preventing alerts.

• Check the Suricata log for additional clues.

• Check the Elastic Agent, Logstash, and Elasticsearch logs for any pipeline issues that may be preventing the alerts from being written to Elasticsearch.

• Try installing a simple import node (perhaps in a VM) following the steps in the First Time Users section and see if you get alerts there. If so, compare the working system to the non-working system and determine where the differences are.

Testing Rules¶

To test a new rule, use the following utility on a node that runs Suricata (ie Sensor or Import).

sudo so-suricata-testrule <Filename> /path/to/pcap/test.PCAP

The file should contain the new rule that you would like to test. The PCAP should contain network data that will trigger the rule.

Variables¶

To add or modify Suricata Variables, navigate to Suricata > config > vars > address-groups or port-groups.

You can assign a list of hosts, networks, or other customizations to a Suricata variable. The variable can then be re-used within Suricata rules and/or Overrides. This allows for a single adjustment to the variable that will affect all rules referencing it.

Address Groups¶

Address groups define IP addresses or network ranges. Suricata comes with a number of common address groups already defined.

Address Group Syntax¶

Values can be specified using the following formats (single or multi-line):

• Single IP: 192.168.1.100
• CIDR notation: 192.168.1.0/24
• IP range: 192.168.1.1-192.168.1.50
• Multiple values: 192.168.1.0/24,10.0.0.0/8
• Negation: !192.168.1.100 or !$OTHER_VAR
• Variable reference: $HOME_NET

Port Groups¶

Port groups define TCP/UDP ports for specific services. Suricata comes with a number of common port groups already defined.

Port Group Syntax¶

Values can be specified using the following formats (single or multi-line):

• Single port: 80
• Port range: 1024:65535
• Multiple ports: 80,443,8080
• Negation: !80
• Any port: any

Custom Variables¶

Create custom variables by selecting an existing Address Group or Port Group and clicking "Duplicate". Enter a name using uppercase naming convention, then click "Create Setting".

Note: The new variable is not saved until you modify its value and click the green "Save Changes" checkmark.

Note: Custom Port Group variables have some syntactical limitations, for example, not being able to use negation.

Disabling¶

If you need to disable Suricata, you can do so via Administration --> Configuration --> Suricata --> enabled.
