Zeek¶
Security Onion includes Zeek for network protocol analysis and metadata. From https://zeek.org:
Zeek is a powerful network analysis framework that is much different from the typical IDS you may know. (Zeek is the new name for the long-established Bro system. Note that parts of the system retain the "Bro" name, and it also often appears in the documentation and distributions.)
Zeek logs are sent to Elasticsearch for parsing and storage and can then be found in Dashboards, Hunt, and Kibana. Here's an example of Zeek logs in Hunt:
Community ID¶
Security Onion enables Zeek's built-in support for Community ID.
Packet Loss and Capture Loss¶
Zeek reports both packet loss and capture loss and you can find graphs of these in InfluxDB. If Zeek reports packet loss, then you most likely need to adjust the number of Zeek workers as shown below or filter out traffic using BPF. If Zeek is reporting capture loss but no packet loss, this usually means that the capture loss is happening upstream in the TAP or SPAN port itself.
Configuration¶
You can configure Zeek by going to Administration --> Configuration --> Zeek.
Zeek logs are consumed by the Elastic Agent (managed by Elastic Fleet) so if you want to configure which Zeek logs are excluded, you can go to Administration --> Configuration --> elasticfleet --> logging --> Zeek --> excluded.
HOME_NET¶
The HOME_NET variable defines the networks that are considered home networks (those networks that you are monitoring and defending). The default value is RFC1918 private address space (10.0.0.0/8, 192.168.0.0/16, and 172.16.0.0/12). You can modify this default value by going to Administration --> Configuration --> Zeek --> config --> networks --> HOME_NET.
Performance¶
Zeek uses AF-PACKET so that you can spin up multiple Zeek workers to handle more traffic.
If you have multiple physical CPUs, you’ll most likely want to pin sniffing processes to a CPU in the same Non-Uniform Memory Access (NUMA) domain that your sniffing NIC is bound to. Accessing a CPU in the same NUMA domain is faster than across a NUMA domain.
Note
For more information about determining NUMA domains using lscpu and lstopo, please see https://github.com/brokenscripts/cpu_pinning.
You can modify Zeek worker count by going to Administration --> Configuration --> Zeek --> config --> node --> workers.
Disabling¶

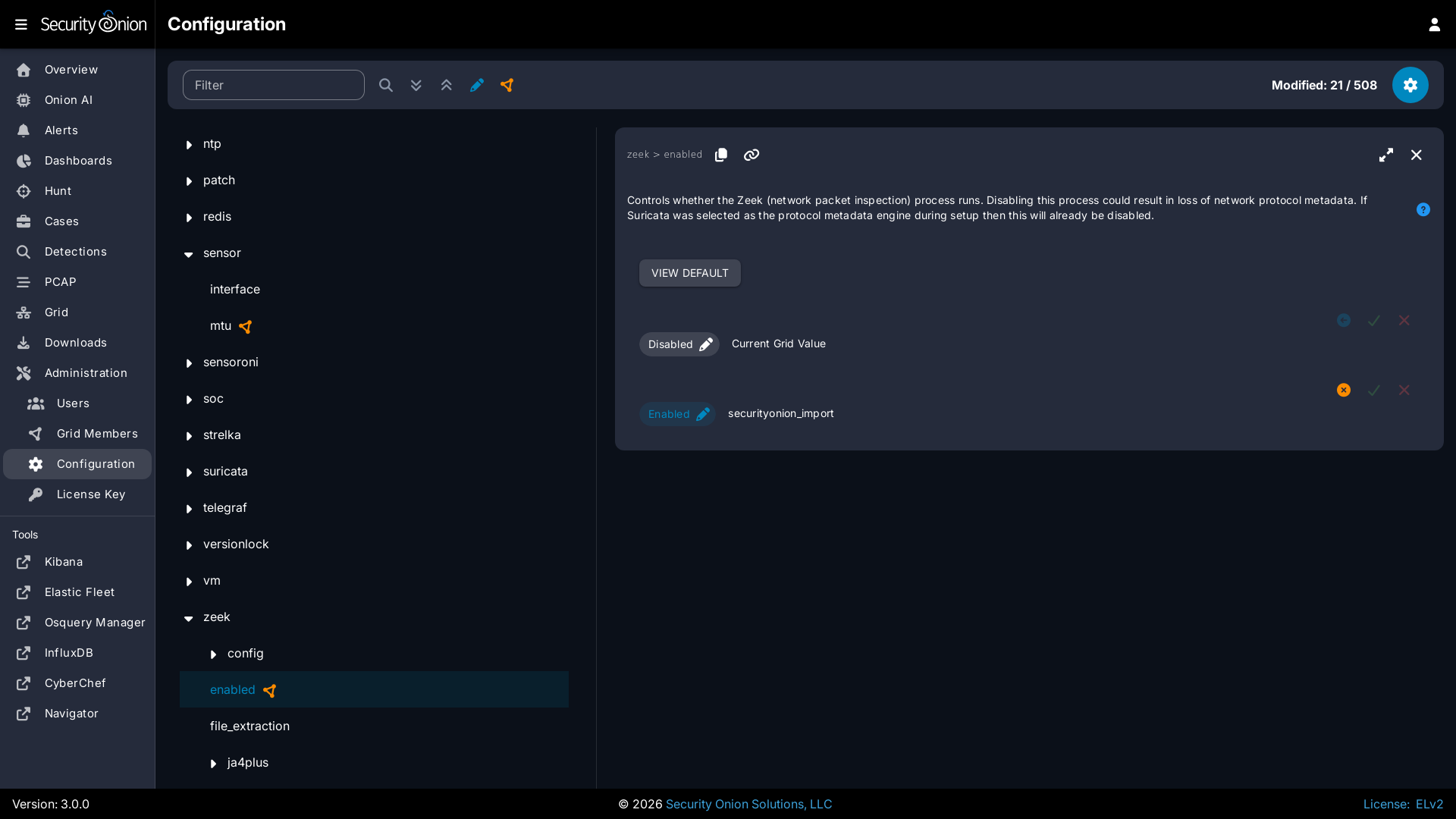

Zeek can be disabled by going to Administration --> Configuration --> Zeek --> enabled.
Syslog¶
To forward Zeek logs to an external syslog collector, please see the syslog-output section.
Logs¶
Zeek logs are stored in /nsm/zeek/logs. They are collected by Elastic Agent, parsed by and stored in Elasticsearch, and viewable in Dashboards, Hunt, and Kibana.
We configure Zeek to output logs in JSON format. If you need to parse those JSON logs from the command line, you can use jq.
Zeek monitors your network traffic and logs protocol metadata. Here are just a few examples.
conn.log¶
- TCP/UDP/ICMP connections
- For ICMP connections, ICMP type is logged as source port and ICMP code as destination port
- For more information, see https://docs.zeek.org/en/latest/scripts/base/protocols/conn/main.zeek.html#type-Conn::Info.
dns.log¶
- DNS activity
- For more information, see https://docs.zeek.org/en/latest/scripts/base/protocols/dns/main.zeek.html#type-DNS::Info.
http.log¶
- HTTP requests and replies
- For more information, see https://docs.zeek.org/en/latest/scripts/base/protocols/http/main.zeek.html#type-HTTP::Info.
ssl.log¶
- SSL/TLS handshake info
- For more information, see https://docs.zeek.org/en/latest/scripts/base/protocols/ssl/main.zeek.html#type-SSL::Info.
notice.log¶
- Zeek notices
- For more information, see https://docs.zeek.org/en/latest/scripts/base/frameworks/notice/main.zeek.html#type-Notice::Info.
Other Zeek logs¶
Zeek also provides other logs by default and you can read more about them at https://docs.zeek.org/en/latest/script-reference/log-files.html.
In addition to Zeek's default logs, we also include protocol analyzers for STUN, TDS, and Wireguard traffic. We also include support for ICS/SCADA protocols such as BACnet, BSAP, CIP, COTP, DNP3, ECAT, ENIP, Modbus, OPC UA, Profinet, and S7. All of these analyzers are enabled by default and you can find corresponding dashboards for each of them in Dashboards.
We also include MITRE BZAR scripts and you can read more about them at https://github.com/mitre-attack/bzar. Please note that the MITRE BZAR scripts are disabled by default. If you would like to enable them, you can do so via Administration --> Configuration --> Zeek. Once enabled, you can then check for BZAR detections by going to Dashboards and selecting the Zeek Notice dashboard.
As you can see, Zeek log data can provide a wealth of information to the analyst, all easily accessible through Dashboards, Hunt, or Kibana.
File Extraction¶
By default, Zeek will extract files from network traffic and Strelka will then analyze those extracted files.
VLAN Tags¶
If your network traffic has VLAN tags, then Zeek will log them in conn.log. Dashboards includes a VLAN dashboard which shows this data.
Intel¶
You can add your own intel to /opt/so/saltstack/local/salt/zeek/policy/intel/intel.dat on the manager and it will automatically replicate to all sensor nodes. If the /opt/so/saltstack/local/salt/zeek/policy/intel/ directory is empty, you can copy the default files (both intel.dat and __load__.Zeek) from /opt/so/saltstack/default/salt/zeek/policy/intel/ as follows:
sudo cp /opt/so/saltstack/default/salt/zeek/policy/intel/* /opt/so/saltstack/local/salt/zeek/policy/intel/
intel.dat. When editing this file, please follow these guidelines:
- no leading spaces or lines
- separate fields with a single literal tab character
- no trailing spaces or lines
The default intel.dat file follows these guidelines so you can reference it as an example of the proper format.
When finished editing intel.dat, run sudo salt $SENSORNAME_$ROLE state.highstate to sync /opt/so/saltstack/local/salt/zeek/policy/intel/ to /opt/so/conf/zeek/policy/intel/. If you have a distributed deployment with separate sensor nodes, it may take up to 15 minutes for intel to sync to the sensor nodes.
If you experience an error, or do not notice /nsm/zeek/logs/current/intel.log being generated, try having a look in /nsm/zeek/logs/current/reporter.log for clues. You may also want to restart Zeek after making changes by running sudo so-Zeek-restart.
For more information, please see https://docs.zeek.org/en/latest/frameworks/intel.html.
Custom Packages¶
You can install custom Zeek packages using zkg. Place each package as a subdirectory in /opt/so/saltstack/local/salt/zeek/zkg/ on the manager. For example, if you have a custom package called my-package, the directory structure would be:
The package directory should contain a valid Zeek package structure (including a zkg.meta file).
Note
zkg requires packages from git repos to be a clone of the repo. The working tree must be clean otherwise it will not install the package. git status will tell you if it is clean or not.
After placing the package, run sudo salt $SENSORNAME_$ROLE state.highstate to sync the packages to the sensor nodes. The packages will be automatically installed with zkg each time the Zeek container starts. If you have a distributed deployment with separate sensor nodes, it may take up to 15 minutes for packages to sync to the sensor nodes.
You can verify that a custom package was installed by checking the Zeek container logs:
Diagnostic Logging¶
Zeek diagnostic logs can be found in /nsm/zeek/logs/. Look for files like reporter.log, stats.log, stderr.log, and stdout.log. Depending on what you're looking for, you may also need to look at the Docker logs for the container:
More Information¶
Note
For more information about Zeek, please see https://zeek.org.
